The Pinnacle of Active Safety
ESE Lightning Arrester
Advanced Early Streamer Emission (ESE) systems engineered to intercept lightning strikes at a distance, ensuring an expanded zone of safety for critical infrastructure and high-value assets.
NFC 17-102
Technical Standards
The ESE (Early Streamer Emission) system is a revolutionary advancement over traditional Franklin rods. It utilizes the naturally occurring atmospheric electric field during a thunderstorm to generate an "Upward Streamer."
By releasing this streamer microseconds before any other surrounding object, the arrester creates a preferred point of impact. This "Time Advantage" allows the lightning strike to be intercepted far above the structure, significantly increasing the radius of protection (Rp) for expansive sites like solar parks, stadiums, and industrial complexes.
120m
Max Radius
100%
Autonomous
Operation Cycle
Our systems follow a strict 3-stage operation cycle to guarantee reliability:
-
1
Energy Accumulation: The device captures ambient energy from the atmospheric field as the storm approaches.
-
2
High-Voltage Triggering: An internal circuit senses the spike in voltage and triggers the ion emission.
-
3
Upward Leader Emission: The streamer is sent upwards to intercept the lightning strike mid-air.

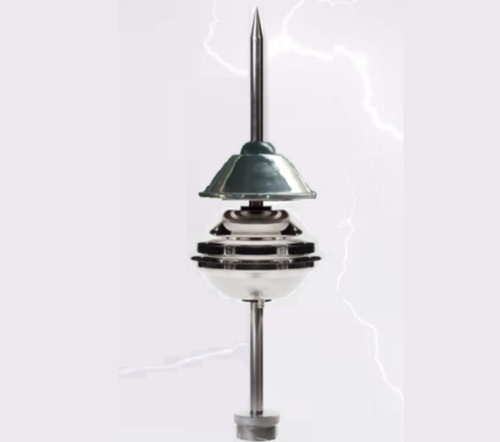

Safe Shade
AAA-SS
High-Frequency Performance
The Safe Shade Protector series represents our most robust ESE solution for heavy industrial zones. The AAA-SS is specifically designed for vast environments, offering the maximum possible streamer advance time. The AAA-SS is highly efficient for medium-sized commercial infrastructure, ensuring that sensitive electronic systems remain shielded from atmospheric discharges.
- Manufactured from high-grade 316L Stainless Steel for extreme durability.
- Tested for extreme peak currents exceeding 200kA.
- Advanced ion-generation technology for reliable strike capture.

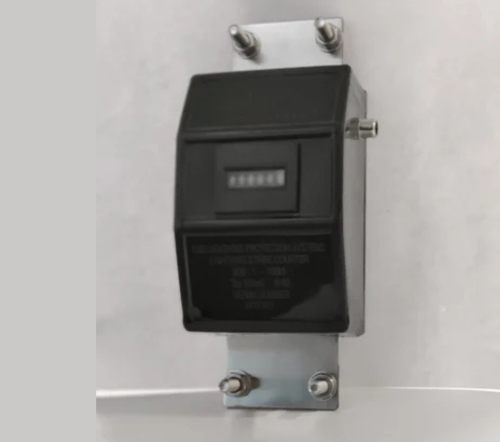

Strike Counter
ESE Lightning Arrester Counter
The Lightning Strike Counter is produced to count the lightning strike discharges that goes through the conductor down to the ground. The counter is to be installed on the down conductor. It can whether be installed serial or parallel. The device consists of electronical parts.
No maintenance required. Do not try to unscrew or uninstall the equipment as this will cause damage and will break down the product guarantee conditions. The device is a high technology product and conforms the working and laboratory test conditions.
SPECIFICATIONS
- Dimensions: 173x82x44 mm
- Weight: 740 gr.
- Temperature Range: -20 to +50 °C
- Counter: 6 digits analog re-settable
- Protection: IP 65 (IEC529)
- Starting Threshold: From 1 to 100 kA in 8/20 wave
- Min. Time Between 2 Discharges: 100 ms
- Connection: Ø8 - 30x2 - 30x3 available
- Current Sensitivity: Min. 350 A to 100 kA
- Strike Counter Display: 1-999999 (6 Digit not re-settable)
